The Tiaojiou LED 24 Hour Lighting System

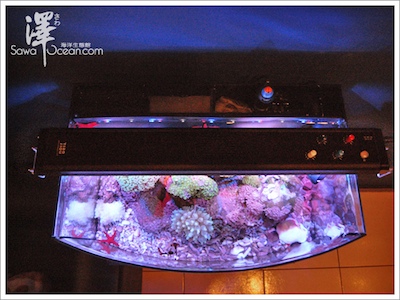

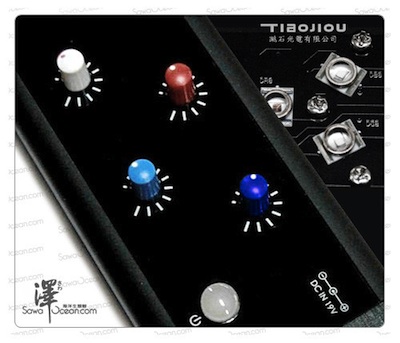

The incredible Tiaojiou LED aquarium lamp shows that the Earthquake Fish is not the only big thing to come from Taiwan. This feature-rich LED system rivals the MAXSPECT and even the Pacific Sun LED. Until this post, the Taiojiou has been a big secret kept by our friends out East. The obvious, the Tiaojiou has dials to control the intensity of each color of LED to set for individual taste or coral types. Don't want to get up? There is a remote control. Want to set and forget? There now is software to control the lamp over a 24 hour period down to 15 second intervals from your computer! Pics, videos and more details inside.



Tiaojiou Background:

The Tiaojiou LED lamps are from Tiaojiou Limited, located in Taipei City, Taiwan. Tiaojiou LTD is associated with Tiaoshi Optical which was established in 2007 dedicated to solid-state lighting applications and R&D. The founder has a background in Windows Based Terminal, LED/OLED drivers and digital camera modules with optical modules testing. The Tiaojiou LED aquarium lamps are distributed by SawaOcean.



Tiaojiou LED Lamp Features:

• Adjustable multi-color mix of special optical features for different biological needs
• High Brightness LED single wattage stars ranging from 2+ watts to 3.9 watts
• High-textured aluminum alloy, stainless steel shell for excellent heat dissipation
• 90 degree LED lens
• USB Port
• Remote control to choose three changes of 24 hour settings and show 18 different predetermined light configurations
• Optional tripods and acrylic racks available
• 50,000 hour lifespan

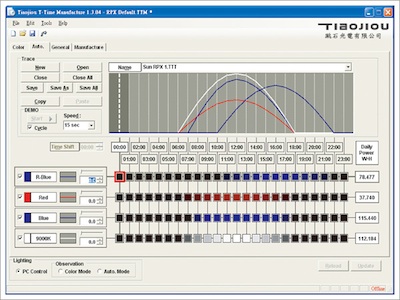

Tiaojiou LED Computer Software:


WYSIWYG 24 hour timeline allows for control of different colors of LED lights and power and interpretation of spectral colors
Through the 'show' function you can choose from 15 seconds, 30 seconds and different modes for sun and moon light

Tiaojiou Remote:

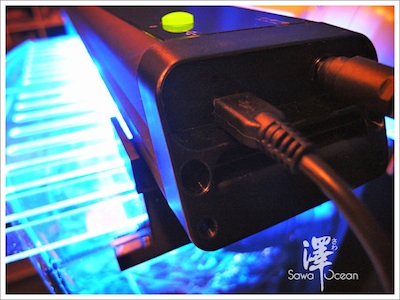

Tiaojiou USB Connection:

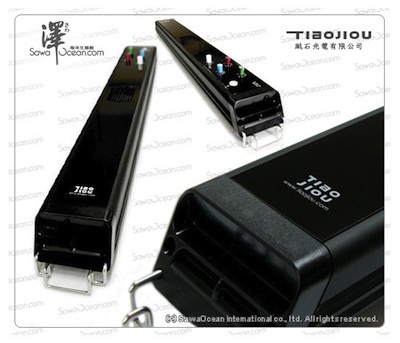

The Tiaojiou LED Lamps:

RM-60
Length: 22.8" to 28.7"
Output: 0 - 51 watts, 19V, 2.7A
LEDS: (4) 3.9w white, (5) 2.4w red, (5) 3.9w blue, (5) 2.7w royal blue
Price: $10,800 yuan (approx. $1581 USD)

RPM-60
Length: 22.8" to 28.7"
Output: 0 - 51 watts, 19V, 2.7A
LEDS: (4) 3.9w white, (5) 2.4w red, (5) 3.9w blue, (5) 2.7w green
Price: $10,800 yuan (approx. $1581 USD)

PPM-90
Length: 35.4" to 40.5"
Output: 0-62 watts, 24V, 2.6A
LEDS: (6) 3.9w white, (3) 2.4w red, (6) 3.9w blue, (3) 2.7w royal blue
Price: $12,800 yuan (approx. $1874 USD)

PPM-120
Length: 46.06" to 51.18"
Output: 0-81 watts, 30V, 2.6A
LEDS: ( 8 ) 3.9w white, (4) 2.4w red, ( 8 ) 3.9w blue, (4) 2.7w royal blue
Price: $14,800 yuan (approx. $2167 USD)


White LED luminous efficiency :87.4-93 .9 lm @ 350 mA, a maximum operating current 1000mA.
Blue LED luminous efficiency of the lowest: 23.5 lm @ 350 mA, a maximum operating current 1000mA.







Sources:
tiaojiou
http://sawaocean.com/ (distributor)

SawaOcean was contacted for this story.
Linkbacks were given.


Check The Dates! You read it here first. No site in this hemisphere highlighted this lamp until now.
3reef Original News - this product highlight was not scraped and paraphrased from other sites... and reposted as original news.



Nice unit, but pricey.



Gotta pay to play.
Videos added.



Maybe, but as we know LED lighting is seriously on the downslope of price.

The thing that sets this light apart is the options that it has. Those features it offers are pretty amazing really. I mean, what other light has a usb hookup and software to control it?



Well the Pacific Sun LED linked in first post is the only aquarium lamp I know of that comes close. It does not use USB, but bluetooth! This Tiaojiou LED is pretty unique though.



nice. The only thing that concerns me about this tho, is it is think and LEDs dont have a large coverge like say MH does. I'd be to afraid that the corals not placed directly under the unit it self wouldnt be getting enough light.



ouch, 3K (or 6K if they need to be doubled up for wider tanks) to light a 6' tank. oh well, just another reason to play the lotto I guess. That software is really cool, and who wouldn't want a remote for their fish tank . . . how pimp is that?

~Will.



get 3 then



As you can see in the pictures, there are beams of light right on the coral, very un-natural looking. The unit need to be at least 12-18" above the tank for a good shimmer and natural lighting effect. I have experience with my Power Brites.



I only want to know one thing...how the heck do you pronounce that?
