My DIY 210 gal Sump Refuig

Hi,<br />
At long last as promised here are a few pictures of my monster sump going through...
Click on the photo to start tagging. Done Tagging

In This Album

Sump-Fuge-Frag Tank combo MMcDonald Sump Design McDonald Simplified Sump Refuge Design Dufresne 250 skimmer 75 Gal Sump sumpfront view new sump My DIY 210 gal Sump Refuig Pump 20g long with 10g sump/refugium!!! SumpDetail_2012-09-07 55 gallon sump with fuge baffles My DIY 210 gal Sump Refuig 20 Gallon Sump with Refugium myRef3

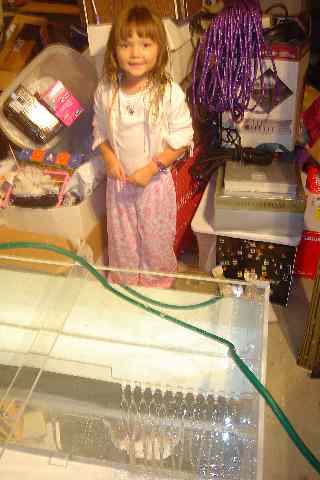

At long last as promised here are a few pictures of my monster sump going through it's water test. I know it hard to get a feel for the size of the beast, so I'm including one that includes my daughter. It's 98% done. I have a couple of internal leaks to fix and one very slow external where it was banged while being moved. Otherwise I just have to drill the through hulls and mount some plumbing brackets. It is 96x30x18. That gives me about 210 total capacity for over flow purposes and about 165 during operation. The sump section holds about 62 and the refug holds about 55. The rest of the capacity is taken up by the skimmer section and the return section.
I'm out of town again next week so I'm hoping to finish every thing up and begin to run the plumming Thanksgiving weekend.

What do you think?
  1. jonathan
  2. apollo'sowner
    that would be grand for my 20 nano cube. Once a year water change. Awsome sump!
  3. tigermike74
    Wow that is huge, awesome work!
