The Quick Tunze ATO Install

Discussion in 'Reef Aquarium Articles and How To's' started by Matt Rogers, Mar 5, 2010.

to remove this notice and enjoy 3reef content with less ads. 3reef membership is free.

  1. Matt Rogers

    Matt Rogers Kingfish Staff Member

    Joined:
    Dec 31, 2000
    Messages:
    13,466
    Location:
    Berkeley, CA
    Installing one of the new Tunze Osmolator Universal 3155 ATOs with the magnet mount is a painless and quick process. The Tunze ATO has been a reigning king of the high-end auto top offs for some time and it recently was refined with a couple magnet mounts thrown in, a return brace and a much, much smaller transformer plug than the original.

    [​IMG]

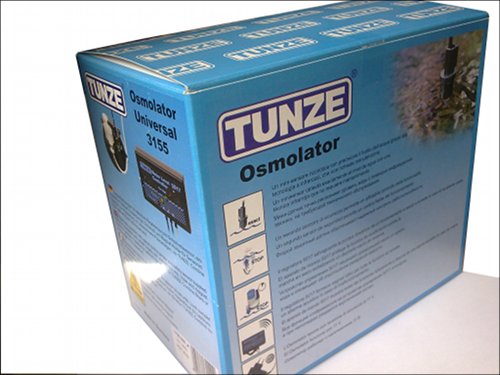

    The New Tunze Osmolator Universal 3155 Auto Top Off

    [​IMG]


    I have been using an original Tunze Osmolator Universal 3155 ATO for a few years now on a different tank and it has been trouble free. The infrared sensor requires virtually no more maintenance than an occasional wipe. The pump has never burned out even when running dry. The controller is really nice to see what is going on in a glance.

    And the biggest selling point for me beyond the reliability is the accuracy of this Tunze ATO - as far as I can tell, the water never fluctuates more than 1/8 of an inch keeping your salinity and your skimmer extremely stable.

    After a week of watching this unit work, I quickly rationalized the $200 price tag. Few things on your aquarium are more critical than your auto top off unit and this one puts your mind at ease. And the new version makes it even better with the easy mounts.

    Shameless plug:
    I bought the new Tunze from 3reef Sponsor Aqua Cave for $213 with free shipping and it was here in just a few days.

    Now back to the the pics...

    [​IMG]

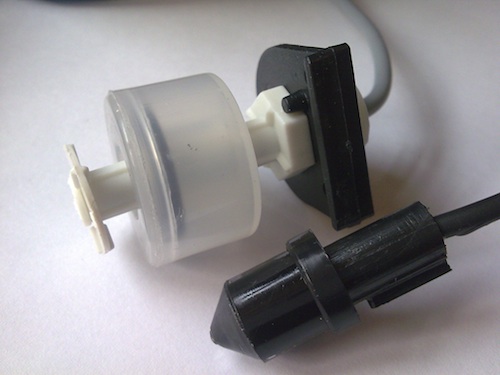

    The infrared water level sensor and the emergency shut-off float sensor

    [​IMG]

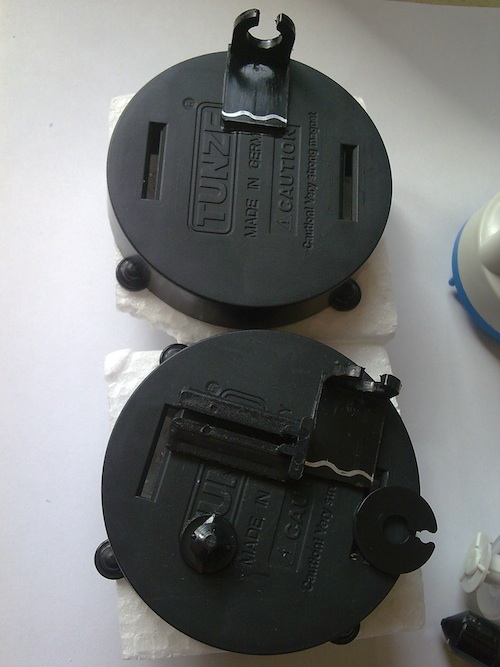

    You get two magnets mounts now - 1 will hold both sensors or you can use both to mount sensors separately

    [​IMG]

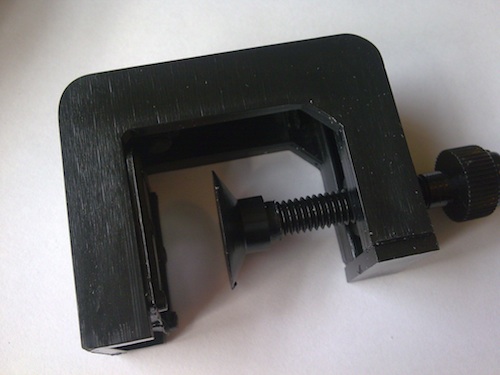

    The Bracket for the water return line is really for rimless tanks but can be used vertically on a USA tank.

    [​IMG]

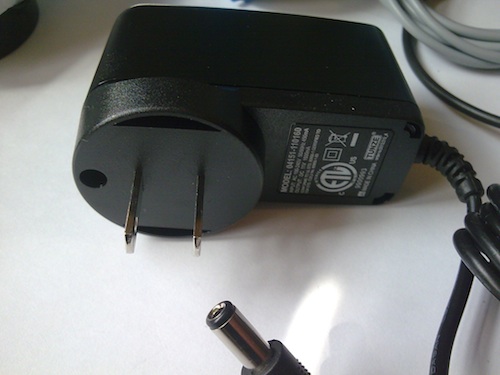

    The new transformer plug is a lot smaller than original but still has a bigger foot print than standard plugs so you may need to use a extension on a power strip

    [​IMG]
    Mounted and ready to go - that was easy... there is even a water level line on mount to make it really easy.

    [​IMG]

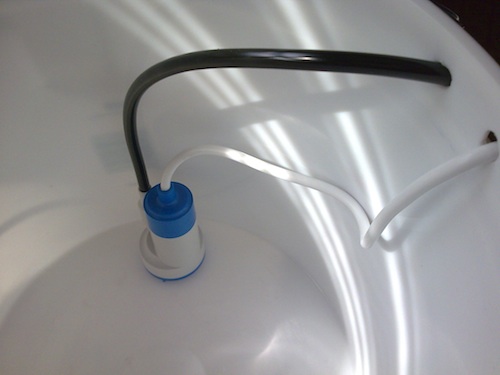

    Pump in reservoir bucket. Note holes in side for lines.

    [​IMG]

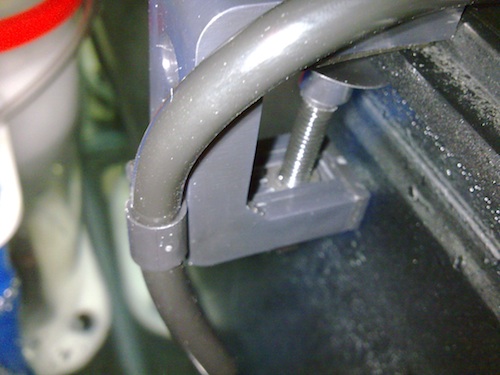

    The Bracket is on, but I will rig a bit to make stronger on the rim.

    [​IMG]
    I love the Tunze controller - from just knowing that the unit is on, to knowing what your water level is at in a glance.


    Installation Steps & Tips:


    1) Find place a place in stand or near bucket for your controller.
    • If placing in your stand note the length of the power line to the pump from the controller.. this will restrict your placement.
    • If placing outside the stand, note the lengths of the sensor cords (they are a few feet long or so) so that probably will be your restriction.

    2) Rinse water level sensor with soapy hot water to remove dust. Initially you may encounter some quirks with this otherwise until the sensor is 'broken in.'

    3) Drill a couple 1/4 inch holes near the top side of your freshwater reservoir bucket. This will allow you to use a lid on it to keep dust out by running the power and water lines through the holes instead of coming out the top. Do not put the lid on too tightly so you get some ventilation. I just place it there really.

    4) Mount above the water in the sump and then carefully slide the magnets down into the water. Note the water level line on mount for placement. Sensor tip should just be breaking the water.

    5) Plug it in and test high-level alarm by pulling the float sensor up.


    You are done! :)

    Now you can enjoy years of water stability with minimal maintenance. I am sure you will become a fan of this ATO. It is unobtrusive and so reliable.


    NOTE - when doing water changes, you probably will need to unplug the ATO. I simply remove the power line from the controller to do this easily then put it back in when I am done.

    NOTE2 - When refilling bucket, test pump to insure there are not air bubbles trapped in it that will prevent it from working. I just shake the pump a bit to remove them and it starts up.

    matt

    Last edited: Mar 5, 2010
  2. Click Here!

  3. missionsix

    missionsix Super Moderator Staff Member

    Joined:
    Sep 25, 2007
    Messages:
    5,734
    Location:
    Bend,Oregon - USA
    That looks pretty sweet!

  4. xmetalfan99

    xmetalfan99 Giant Squid

    Joined:
    Aug 19, 2009
    Messages:
    3,691
    Location:
    morgantown, wv
    That looks like a great ATO. Does it even siphon water out of the holding bucket?

  5. Powerman

    Powerman Giant Squid

    Joined:
    Oct 3, 2008
    Messages:
    3,460
    Location:
    Colorado
    I love mine. I will have to see if I can get the magnets separately. the way I have mine now is not the best... but ya, reliable and 1/8" stability.

  6. Matt Rogers

    Matt Rogers Kingfish Staff Member

    Joined:
    Dec 31, 2000
    Messages:
    13,466
    Location:
    Berkeley, CA
    No it pumps it out.

  7. xmetalfan99

    xmetalfan99 Giant Squid

    Joined:
    Aug 19, 2009
    Messages:
    3,691
    Location:
    morgantown, wv
    I meant to say does the water ever accidentally siphon out of the holding bucket?

  8. Click Here!

  9. Matt Rogers

    Matt Rogers Kingfish Staff Member

    Joined:
    Dec 31, 2000
    Messages:
    13,466
    Location:
    Berkeley, CA
    No I have the output higher than the bucket at the top of the sump on this tank. Good question though. With the pump at the bottom of the bucket, I think you would have to have the return line output on or below the floor to start a siphon so most times you should be fine I'd think.


    Yes the magnets are available separately and will work with original models too. You should get them! Set and forget.

  10. Matt Rogers

    Matt Rogers Kingfish Staff Member

    Joined:
    Dec 31, 2000
    Messages:
    13,466
    Location:
    Berkeley, CA
    I want to note my only quibbles with this thing -

    1) The pump.

    - It is a bit louder than it should be, it makes a 'whirring' noise.
    - It does not like to stand up, needs a wider base.
    - It is prone to not priming due to air when refilling bucket with water. It would be nice if they eliminated this issue. A shake resolves it, but I have forgotten in the past.

    That said, you can't kill it. I've run my dry for several hours before. Which brings me to my last quibble....

    2) No alarm if pump run dry (out of water). It will continue to test the pump periodically to see if there is a water. It would be nice it there was a water indicator and pump shut off of some sort.


    To me, these are relatively minor issues that I am writing off as quirks that do not eclipse the near fail-proof, low maintenance and accurate infrared water level sensor.

    Worth mentioning though to detail all.

  11. xmetalfan99

    xmetalfan99 Giant Squid

    Joined:
    Aug 19, 2009
    Messages:
    3,691
    Location:
    morgantown, wv

    I think this is my next purchase.

  12. Matt Rogers

    Matt Rogers Kingfish Staff Member

    Joined:
    Dec 31, 2000
    Messages:
    13,466
    Location:
    Berkeley, CA
    Cool man. You will like it a lot.

    Interesting to note that my Bubble Magus NAC6 skimmer is really working now even with just rock now that this ATO is on.
