Looking up at the LumenSKY

The LumenSKY LED lamp from Illuminarium is a new fixture that will be available by June and is notable for its low-profile at only 1.57 inches high and polished reflectors behind every array of LEDs. The 12k 3 watt white LEDs are driven at 2.25 watts for longer life and have a 60 degree beam angle. The LumenSKY keeps weight down by having a remote power supply which also controls 9 different lighting modes. The blue LEDs are 465nm and there are built in moonlights as well. Specs and more pics below.

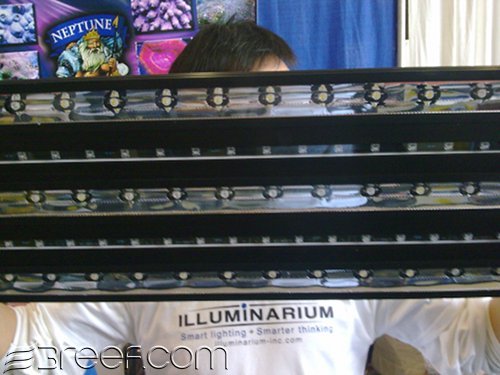

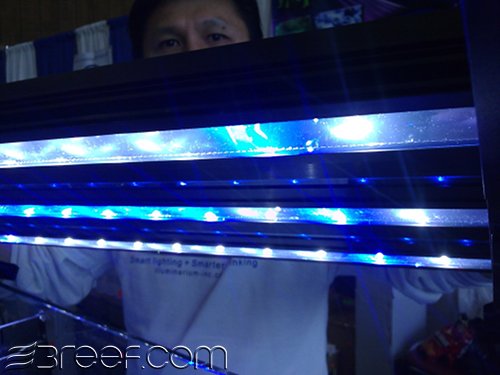

Illuminarium's LumenSKY LED Lamp







LumenSKY Models Available:

* LS-36 = 36W (12 x 3W)
* LS-54 = 54W (18 x 3W)
* LS-72 = 72W (24 x 3W)
* LS-81 = 81W (27 x 3W)
* LS-108 = 108W (36 x 3W)

Fixture Dimensions in inches (LxDxH):

* LS-36 (15.75 x 6 x 1.57)
* LS-54 (21.65 x 6 x 1.57)
* LS-72 (28.35 x 6 x1.57)
* LS-81 (21.65 x 9.84 x 1.57)
* LS-108 (28.35 x 9.84 x 1.57)

LEDs:

* 3W High Brightness white leds at 12,000K
* 3W HighBrightness blue leds at 465nm
* Moonlights - blue leds

LED Ratio:

* Varies according to model

LED Arrangement:

* Varies according to model

Lumen Output*:

* LS-36 = 1800 lm
* LS-54 = 2700 lm
* LS-72 = 3600 lm
* LS-81 = 3800 lm
* LS-108 = 5400 lm

Special Features:

* Built-in reflectors for High Brightness 3W emitters

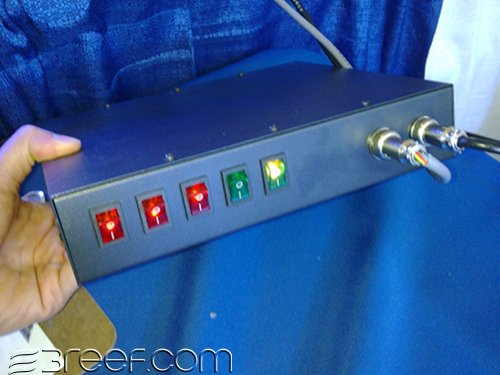

* Remote power supply and light controller box to reduce heat in main fixture
* Multiple mounting options (stand mount, horizontal brace, vertical brackets)

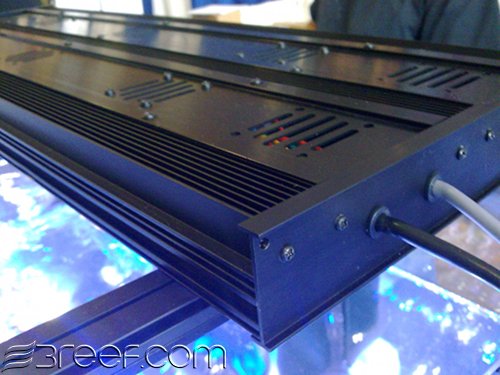

* Dual cooling modes utilizing quiet brushless fans and aluminum heat-sink body
* 9 different lighting modes
* Built-in moonlights
* Aesthetic and sleek profile

Cooling:

* Dual cooling modes utilizing quiet brushless fans and aluminum heat-sink body

Metal Halide Comparison**:

* LS-36 = 100W MH
* LS-54 = 150W MH
* LS-72 = 250W MH
* LS-81 = 250W MH
* LS-108 = 400W MH

Recommended Tank Size***:

* LS-36 = 5 - 30 gal

* LS-54 = 10 - 40 gal
* LS-72 = 35 - 75 gal
* LS-81 = 35 - 75 gal
* LS-108 - 60 - 110 gal

Input Voltage:

* 110v / 220v

Fixture Color:

* Black


Maxing out at 28 inches, the LumenSKY comes up a bit short in length. However, Illuminarium does offer a myriad of mounts that allows you to space out multiple LumenSKYs over your aquarium if you choose. See mounts and more info at Web site below.

Illuminarium Web site:
LumenSKY | Smart Lighting + Smarter Thinking



what is the price for the ls-108 ?



I wonder what the l-36 model will cost. I am doing alot of thinking about an LED set up as of now but would love to not have to DIY one just to get the ability to dim.



LumenSKY pricing

Hi Bill and Paul,

Thanks a bunch for taking interests in our products. We will be posting the pricing on our site this week. We will post updates to this thread as soon as that is done. For now, can you visit us at Illuminarium | Smart Lighting + Smarter Thinking and make sure to follow us on facebook and twitter as that is probably the fastest way to get the latest updates.

Thanks to Matt again, for taking the pictures at BAYMAC and doing a product review for LumenSKY. Please let us know if there are questions to be answered.

Best regards,

Steve



Subscribing for prices.



Hmm was just checking around on your page and it seems you didnt mention what brand of LED will be included with your packages. I was also wondering if you plan to include UV LED's in any of your set ups or have that as an option.

Thanks



Optional upgrades

Bill,

The stock comes with Bridgelux leds but its upgradeable to CREE, so that will be considered an upgrade option. We are in the process of considering to what extent should the fixture be customized. As the week progresses, we will have more information available. Upgrade options will take a longer time for delivery and potentially drive the price up as well, all of this information should be available at the website once its finalized. Thanks for asking, I hope this answers your question. Do let me know if I can help you further, thanks.

Steve



Hi Steve - thanks for stepping in with more details, I look forward to more on your light. Oh and thanks for modeling it too. ;D

matt



Anytime, I love to model

I will send you updates as soon as they get finalized. Thanks Matt.

Steve



While it may be the same factory, Illuminarium has done their own R&D and spec'd the units to what they want. This happens a lot in this, and other industries. Nothing new, and not a big deal.
