    The EcoSmart RF Module upgrade is an easy affair. For those of you who took the cheap route like me and bought the non-wireless Vortech for your nano aquarium, it's time to get off the dime. Face it, you know the other side of your aquarium has been screaming for another Vortech. Now you know that true nutrient export mode can only be achieved by two Vortechs in wireless harmony. So read the install ahead, swallow your pride and buy the RF Module from EcoTech. Because what we've got here is a failure to communicate. :)

    [​IMG]
    The EcoSmart RF Module installed

    [​IMG]
    Unplug controller, unscrew the back and flip over this board.

    [​IMG]

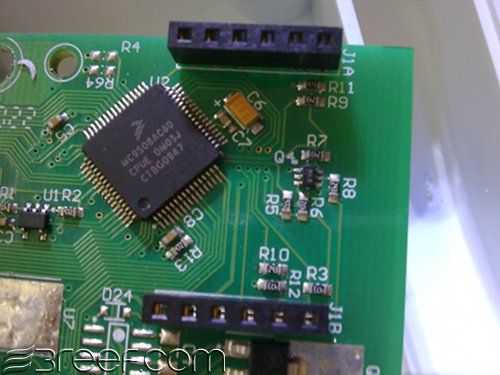

    The female connectors for the EcoSmart RF Module are here.

    [​IMG]
    Connect RF module as shown in 1st pic above so that module overlaps main board.

    [​IMG]

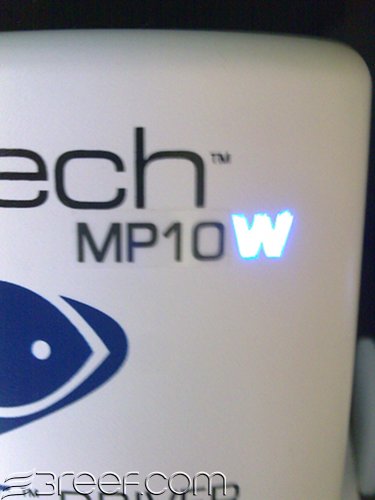

    After seating board, screwing the back plate back on and powering up - you should see the 'W' light up. You are now wireless! Congratulations! Now never buy a non-wireless version again! :)

    matt

    Matt Rogers, May 31, 2011
    Matt Rogers, May 31, 2011
    #1

    2. Click Here!

  2. Biocube

    Biocube Giant Squid

    Joined:
    Feb 17, 2011
    Messages:
    3,499
    Location:
    Northern, IL
    Thanks for the write up, I also went the cheap route and am upgrading mine to wireless.

    Wish I would have read this before I purchased mine.

    Biocube, Jun 24, 2012
    Biocube, Jun 24, 2012
    #2
  3. Thatgrimguy

    Thatgrimguy Flying Squid

    Joined:
    May 15, 2011
    Messages:
    3,026
    Location:
    North Biloxi, MS
    Yeah, it's really easy! Great guide. I was nervous when I did it, but all in all it's a few screws and done.

    Thatgrimguy, Jun 24, 2012
    Thatgrimguy, Jun 24, 2012
    #3
  4. Biocube

    Biocube Giant Squid

    Joined:
    Feb 17, 2011
    Messages:
    3,499
    Location:
    Northern, IL
    Agreed, I ended up taking mine apart because I couldn't fit it through the Biocube stand holes.

    Can't wait to upgrade my Apex and Mp10

    Biocube, Jun 24, 2012
    Biocube, Jun 24, 2012
    #4
  5. jonjonwells

    jonjonwells Great Blue Whale

    Joined:
    Dec 9, 2008
    Messages:
    2,835
    Location:
    SE Kansas

    :victory::drummer::victory:

    Now that is funny...


    Didn't know that the option was upgradable. Great to know for those that are missing out.
