RapidLED Build with ProfiLux control

Discussion in 'LED Aquarium Lighting' started by Strickland_673, Oct 30, 2011.

to remove this notice and enjoy 3reef content with less ads. 3reef membership is free.

  1. Strickland_673

    Strickland_673 Fire Shrimp

    Joined:
    Dec 8, 2008
    Messages:
    302
    So I finally got my DIY LED kit in from RapidLED, unfortunatley I didn't take any pictures of the LEDs going on the heatsink, there's hundreds of pics out there of that. I did take some of wiring the ProfiLux EVG-AP-2F control module for connecting the Meanwell drivers to my Profilux for dimming capabilities. Anyways here's some pics, got any questions I'll try to answer them.

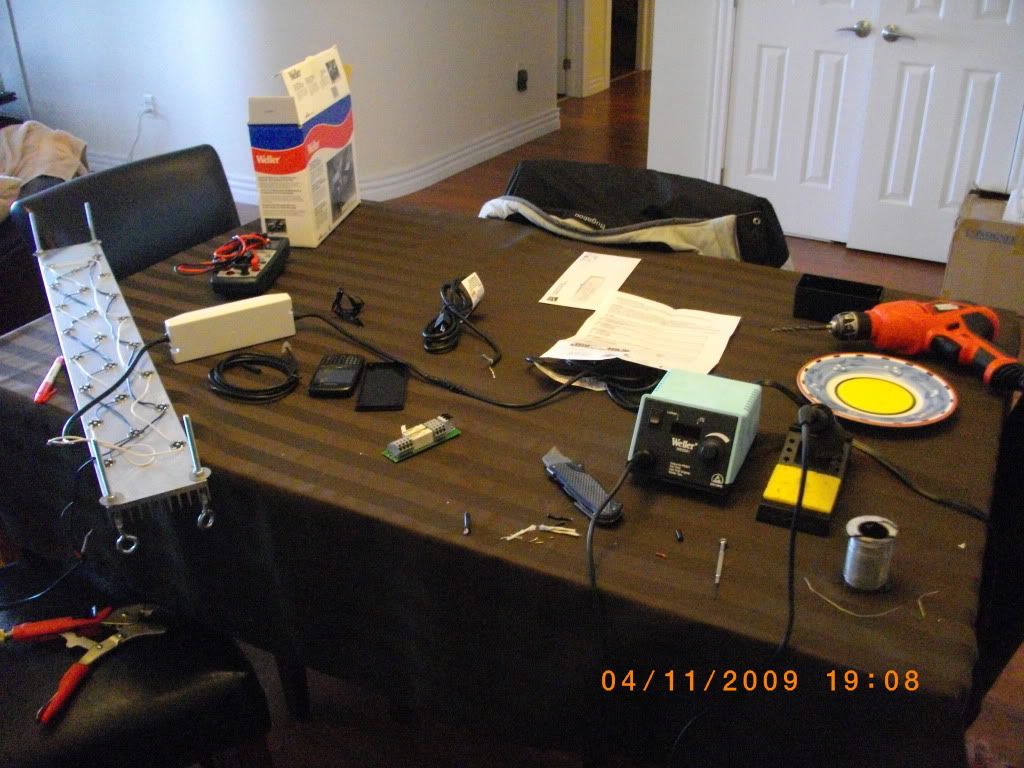

    Work Station Mess
    [​IMG]

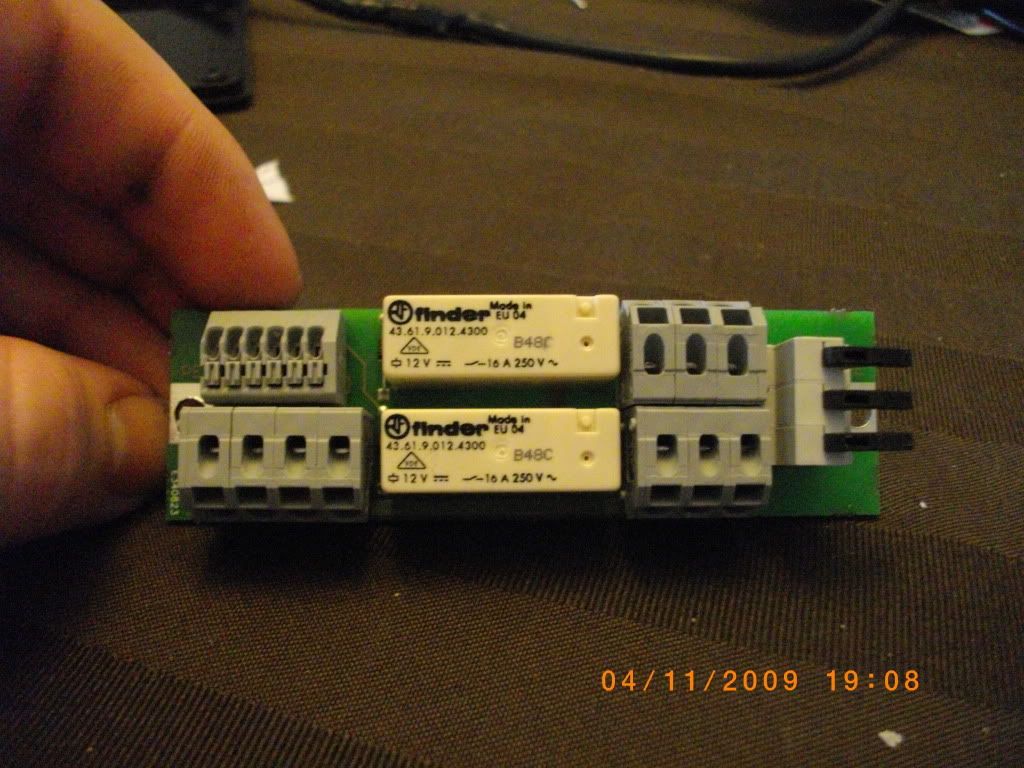

    EVG-AP-2F
    [​IMG]

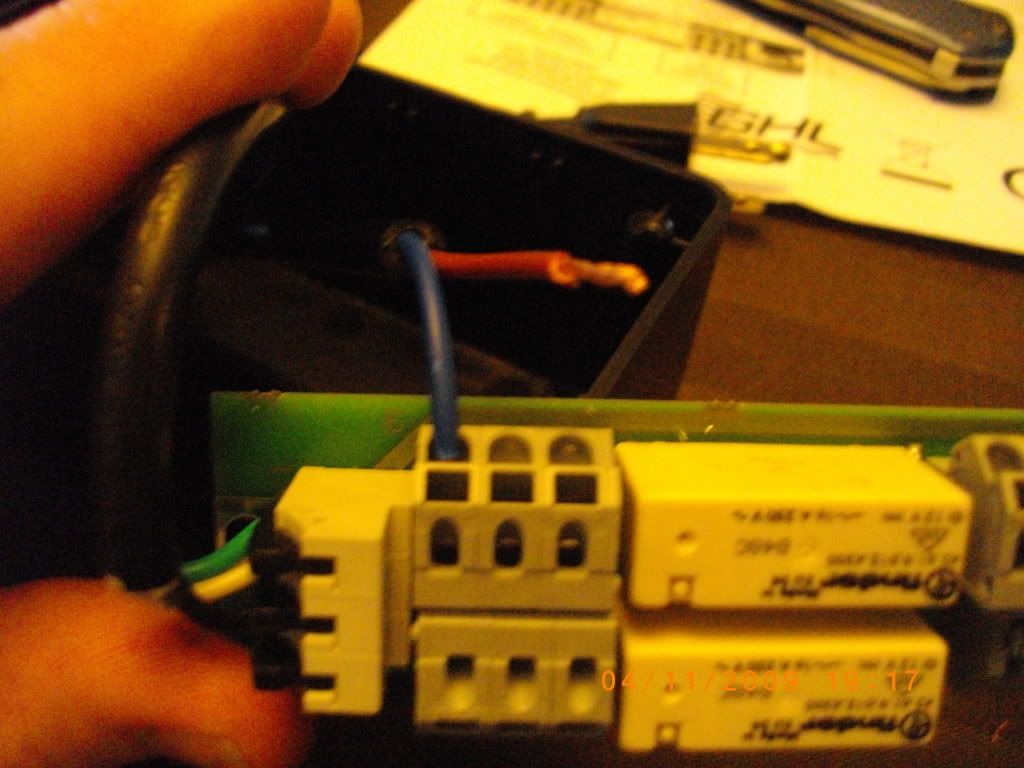

    Project box from the source to make it neat
    [​IMG]
    [​IMG]
    Wiring made "neat"
    [​IMG]
    LEDs 12 Royal Blue and 11 Cool White
    [​IMG]

    Strickland_673, Oct 30, 2011
    Strickland_673, Oct 30, 2011
    #1

    2. Click Here!

  2. Strickland_673

    Strickland_673 Fire Shrimp

    Joined:
    Dec 8, 2008
    Messages:
    302
    Just watched my ProfiLux fade out my lights over the last hour, it's perfect you can't notice the steps between percentages at all. Impressed.

    Strickland_673, Oct 30, 2011
    Strickland_673, Oct 30, 2011
    #2
  3. Strickland_673

    Strickland_673 Fire Shrimp

    Joined:
    Dec 8, 2008
    Messages:
    302
    Anybody else using ProfiLux out there??

    Strickland_673, Nov 6, 2011
    Strickland_673, Nov 6, 2011
    #3
  4. Matt Rogers

    Matt Rogers Kingfish

    Joined:
    Dec 31, 2000
    Messages:
    13,466
    Location:
    Berkeley, CA
    I don't use one but just want to say thanks for the great build pics. Wish I saw this when you posted it. Can you share details about setting the controller?

    Matt Rogers, Nov 6, 2011
    Matt Rogers, Nov 6, 2011
    #4
  5. Reefer Rob

    Reefer Rob Plankton

    Joined:
    Sep 19, 2006
    Messages:
    1
    I'm in the planing stage right now. Any tips on the wiring between the Profilux and the driver? I'm assuming it's 2 channels per outlet. Still trying to work out the perfect color combinations... to much information!

    Reefer Rob, Nov 9, 2011
    Reefer Rob, Nov 9, 2011
    #5
