Album: 0-10v @ 40ma x 4 driver circuit

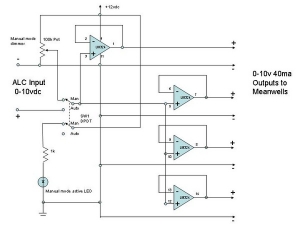

I built this circuit to take the very low current 0-10v output from the Digital Aquatics RKM-ALC and convert it to 4 outputs, 0-10v @ 40ma each. It also has a manual on mode with dimming capabilities.

to remove this notice and enjoy 3reef content with less ads. 3reef membership is free.

0-10v @ 40ma x 4 driver circuit

Updated Sep 27, 2010
Sep 27, 2010
Driver Circuit
Oct 3, 2010

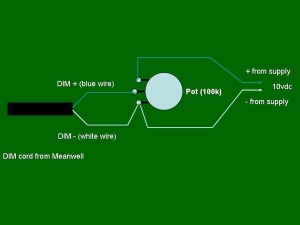

dimmer pot
Loading Photos......
Loading Photos......
Takitaj
I built this circuit to take the very low current 0-10v output from the Digital Aquatics RKM-ALC and convert it to 4 outputs, 0-10v @ 40ma each. It also has a manual on mode with dimming capabilities.
