DIY LED Upgrade

Discussion in 'LED Aquarium Lighting' started by wiigelec, Aug 25, 2016.

to remove this notice and enjoy 3reef content with less ads. 3reef membership is free.

  1. wiigelec

    wiigelec Fire Shrimp

    Joined:
    Jun 12, 2009
    Messages:
    335
    Location:
    SW WY

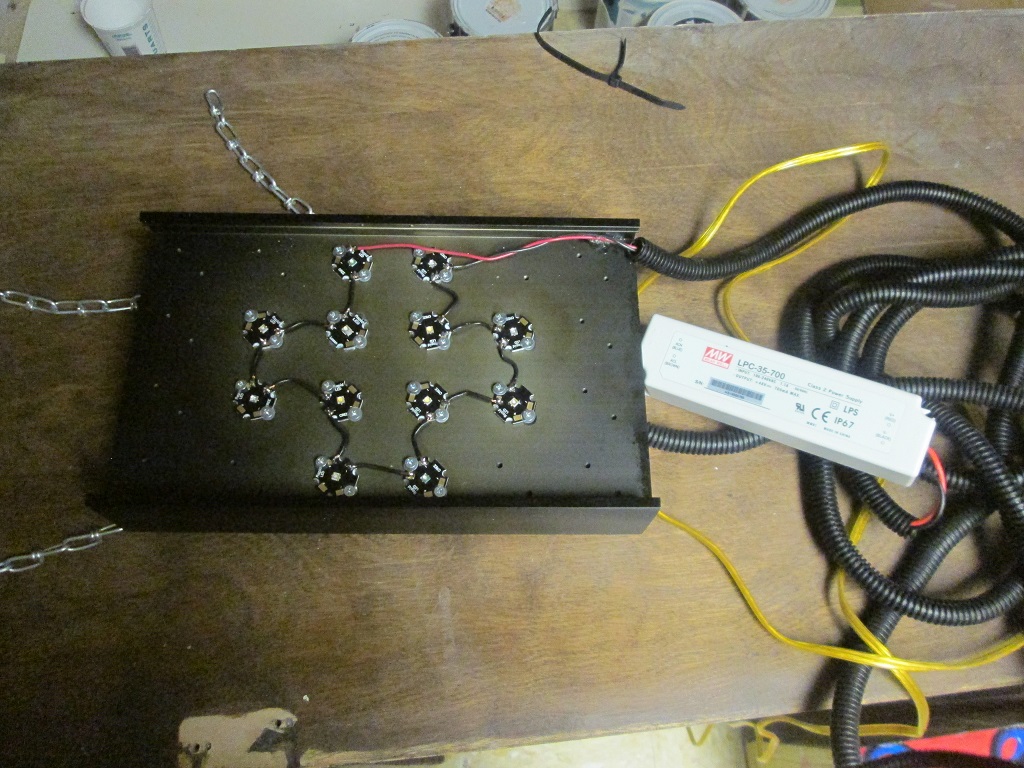

    I'm going to upgrade my DIY LED fixture to a 6 channel dimmable using Storm controller and LDD.

    Current Specifications

    RapidLED 10" heatsink

    LEDs:
    a - 3 x SemiLEDs True Violet UV LED (400-410nm)
    b - 3 x CREE XT-E Royal Blue (450-465nm)
    c - 2 x CREE XP-E Blue (465-485nm)
    d - 1 x Philips Luxeon Rebel ES Cyan LED (490-520nm)
    e - 2 x CREE XP-G2 Warm White (2,600-3,700K)
    f - 1 x CREE XP-G2 Neutral White (3,700-5,000K)

    Layout:
    ---------c---a
    -----a---f---e---b
    -----b---e--d---a
    ---------b---c

    Driver:
    Mean Well LPC-35-700

    [​IMG]

    Last edited: Aug 27, 2016
  2. Click Here!

  3. wiigelec

    wiigelec Fire Shrimp

    Joined:
    Jun 12, 2009
    Messages:
    335
    Location:
    SW WY
    Upgrade parts

    Coralux Storm controller
    Coralux LDD-6 Driver Board
    6 x Mean Well LDD-700H dimmable driver
    Mean Well HLG-80H-24 power supply

    Replacing 2 of the UV LEDS with:
    1 x SemiLEDs Hyper Violet UV LED (420-430nm)
    1 x Ultramarine Royal Blue LED (440-445nm)

    channel 1: UV
    channel 2: royal blue
    channel 3: blue
    channel 4: cyan
    channel 5: warm white
    channel 6: neutral white

  4. Swisswiss

    Swisswiss Caribbean Reef Squid

    Joined:
    Jul 25, 2011
    Messages:
    2,879
    Location:
    Geneva Switzerland
    cool, hope you'll be posting pics along the way

  5. wiigelec

    wiigelec Fire Shrimp

    Joined:
    Jun 12, 2009
    Messages:
    335
    Location:
    SW WY

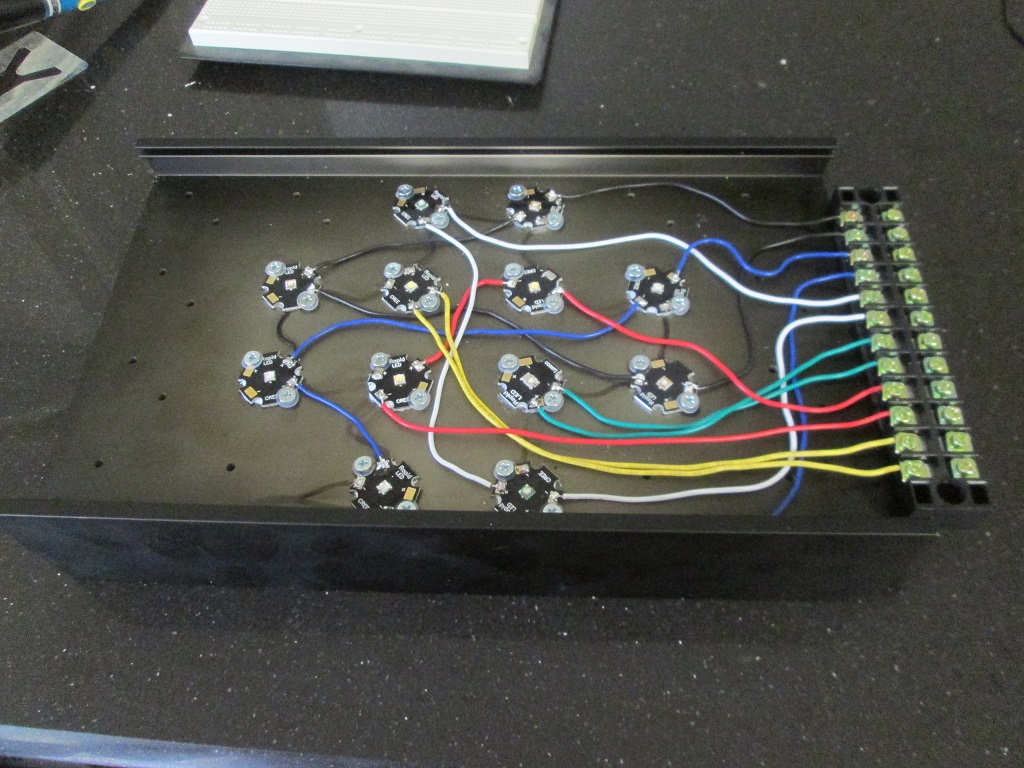

    Got the two new UV LEDs installed and the individual channels rewired and tested with the LPC-35-700 driver.

    UV -------------- channel 1 - black --- 9.76 V - 731 mA - 7.13 W
    Royal blue ---- channel 2 - blue ----- 9.63 V - 731 mA - 7.04 W
    Blue ------------ channel 3 - white --- 6.20 V - 731 mA - 4.53 W
    Cyan ----------- channel 4 - green -- 2.82 V - 731 mA - 2.06 W
    Warm white -- channel 5 - red ------ 6.05 V - 731 mA - 4.42 W
    Neutral white - channel 6 - yellow -- 3.02 V - 731 mA - 2.21 W

    All channels - 37.9 V - 730 mA - 28 W

    [​IMG]

    Swisswiss likes this.
  6. SalinFL

    SalinFL Plankton

    Joined:
    Aug 31, 2011
    Messages:
    5
    Location:
    Tampa, FL
    I love this diy, how did this final solution come about? Are these your diy plans or did you get them from somewhere? I'm wanting to set up a 20 gal and the only thing stopping me is the lighting. Thanks.
